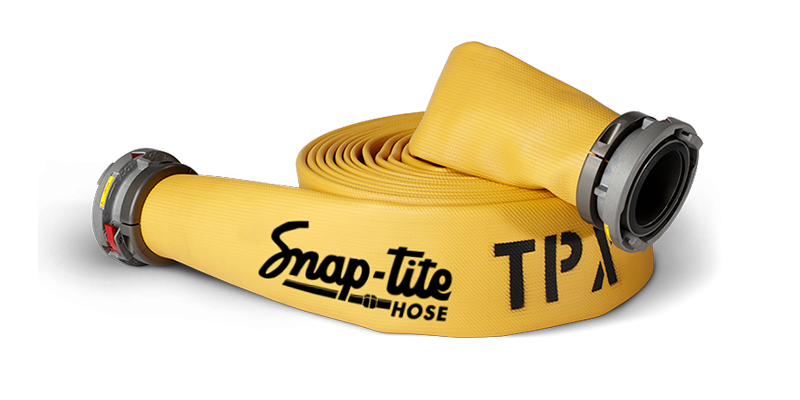

Snap-Tite TPX LDH Fire Hose
Snap-Tite TPX LDH Fire Hose
SKU:STH-TPX30x25Y25N
Due to variations in product weights, we are unable to automate the shipping cost. To place an order, please call (970) 702-4328 or email eli@elevatedfiresupply.com.
TPX™ LDH
The Ultimate Lightweight 3-Ply Hose for Maximum Power
3-ply nitrile rubber supply hose
Traditionally, manufactured extruded hose can vary in thickness, becoming bulky and heavy. TPX™ utilizes a 3-ply design where the ribbed cover and smooth nitrile liner are extruded independently. The cover is inserted inside the tight-weave reinforcement, vulcanized, and turned inside out. The liner is then inserted, and the hose is vulcanized for a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall. The Snap-tite TPX™ is highly resistant to both conductive and radiant heat.
FEATURES
- 3-ply rubber municipal fire hose with both the cover and liner made of heavy-duty nitrile rubber, high tensile strength, tightly woven polyester reinforcement for maximum durability and flexibility.
- Smooth liner keeps friction loss to a minimum for greater flow.
- Nitrile rubber cover greatly increases abrasion resistance, provides long service life, and the tightly woven reinforced jacket resists punctures.
- Suitable for supply and soft sleeve suction applications.
- Remains flexible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
- Tighter weave allows more resistance to puncture while also being easier to pack and store.
-
Lays flat and needs less hose bed space than a typical extruded hose.
- Manufactured in accordance with NFPA 1960 standard, the latest edition within our ISO-9001:2015 certified quality assurance system.
Hose Sizing & Test Standards
The Premier High-Heat Hose:
- Supply
- Soft Suction
- USA Made
- Klean Hose
- Lifetime delamination warranty
- 10-year warranty
- 2-year all-hazard warranty
