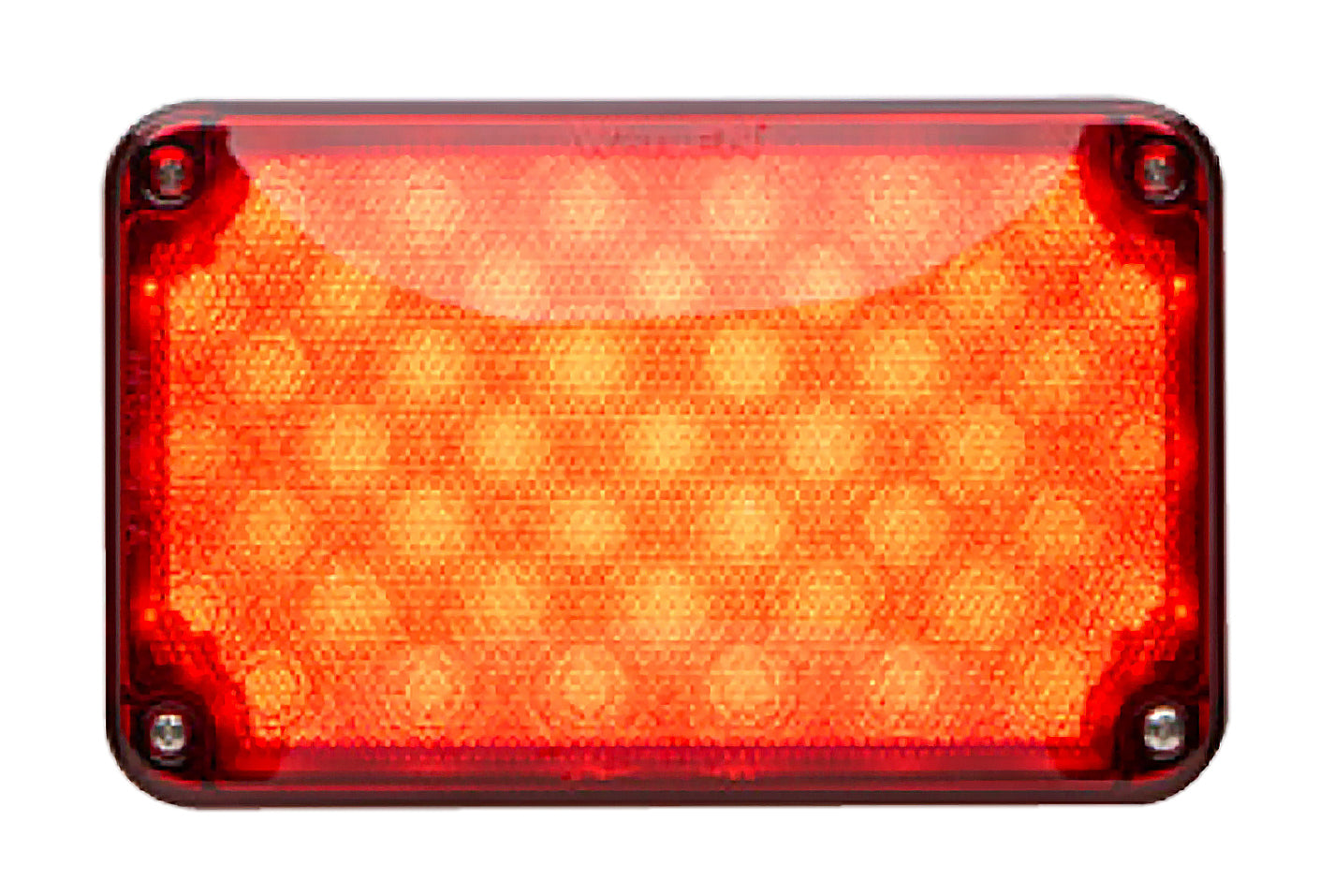

Whelen 600 Series Super-LED Brake/Tail/Turn 604BTT

$175.89
By Whelen
SKU: W-604BTT

Compact LED lighthead, available with a wide variety of mounting fixtures. Durable, long life and high intensity LED lightheads.

FEATURES

  • A mid-sized directional lighthead
  • Surface mount, wide angle LEDs with redesigned spreader optic lenses fill the lighthead evenly with light
  • All LED’s are encapsulated for heavy-duty performance
  • Vibration, moisture and corrosion resistance
  • Minimal current draw
  • Rated for 100,000 hours operation
  • Brake/Tail/Turn Model: 2 Scan-Lock™ flash patterns
  • Brake/tail/turn model includes standard Signal-Alert™ pattern (when LED is activated, Signal-Alert provides 4 bursts of light in 300 millionths of second before turning steady)
  • All lightheads are furnished with 6" wire pigtail
  • Five year unconditional HDP heavy duty professional warranty
  • Mounting options are purchased separately

SPECIFICATIONS

  • KKK 1822-E - Federal Ambulance Specification, Upper & Lower Zones
  • CAC, Title 13, Article 22 (red, blue and amber lightheads)
  • SAE J595 - Flashing Warning Lamps for Authorized Emergency, Maintenance, and Service Vehicles (Jan 90• NFPA 1901 - 1999 Edition)
  • Size: 4-1/8" (105mm) H x 6-1/2" (165mm) W x 1-5/8" (41mm) Recess
  • Size, with optional flange: 5" (127mm) H x 8-1/8" (206mm) W x 1- 1/2" (38mm) Recess LED
