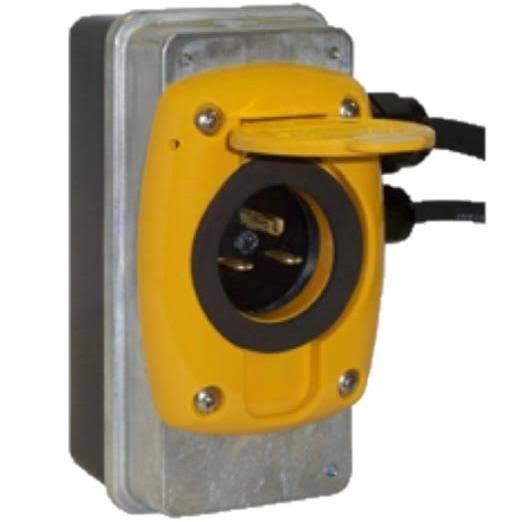

The Kussmaul Super Auto Ejects is a completely sealed automatic power line disconnect.
This prevents contamination of the mechanism by road dirt, and ensures long reliable life even when mounted in the most severe environment.
A novel internal switch arrangement closes and opens the 120 Volt A.C. circuit after the mating connector is inserted, and before the connector is removed. This eliminates arcing at the connector contacts, and assures long contact life.
As with all Auto Ejects, the Super Auto Eject is connected to the starter circuit, so that ejection occurs when the engine is cranked.
Features:
120 Volts AC, 20 Amps
Automatically disconnects shoreline
Completely sealed
Designed specifically for emergency vehicles
Eliminates broken shoreline
Input: 12 Vdc
Female Plug included
Unit supplied with rear housing
Back wired units available upon request
24V system available, please call
Dynamic Disconnect (optional): Sequences energizing of the Auto Eject which eliminates terminal arcing when connecting and disconnecting to the receptacle.
