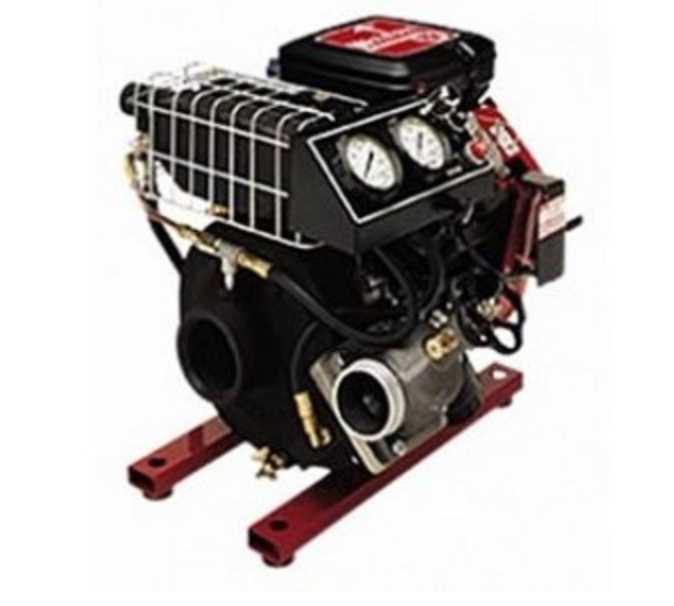

Waterous Wildland Attack Pump & Combination Pump

• Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 hp (13.4 kw) @ 3600 RPM. 34.75 cu. In. (570 cc) displacement, 4-cycle, gasoline-fueled, horizontal shaft.
• 2-1/2-inch female NPT intake.
• Discharge: ball valve with 1-1/2-inch male NH thread (2515B). Ball valve with 1-1/2-inch female NPT (2515B). 1-1/2-inch female NPT (2515F) (no ball valve).
• Operator panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control, panel light and 12-volt outlet.
• Volute body and head with high-strength aluminum alloy, anodized for superior corrosion resistance.
• High-strength, corrosion-resistant bronze impeller, fully-enclosed, double-hubbed to balance hydraulic thrust and mechanically balanced to eliminate vibration.
• Long-wearing bronze wear rings. Easy to replace.
• High-strength stainless steel shaft sleeve.
• Spring-loaded mechanical type shaft seal.
• Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve, operates with push/pull knob. Standard on wrap-around. Optional on no base and rail base.
• Remote 3-gallon (11 liter) tank with fuel level gauge (optional on no base and rail base)
• Integral 3-gallon (11 liter) fuel tank standard with wrap-around base.
• Full pressure lubrication system with an automotive-style oil filter. Oil fill tube with dipstick.
• 12-volt electric starter with manual recoil.
• 16-amp alternator.

Dimensions
