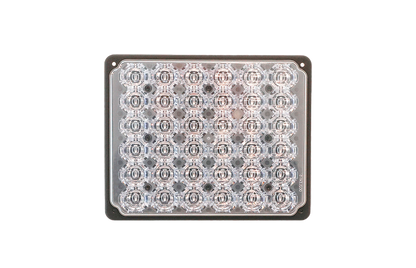

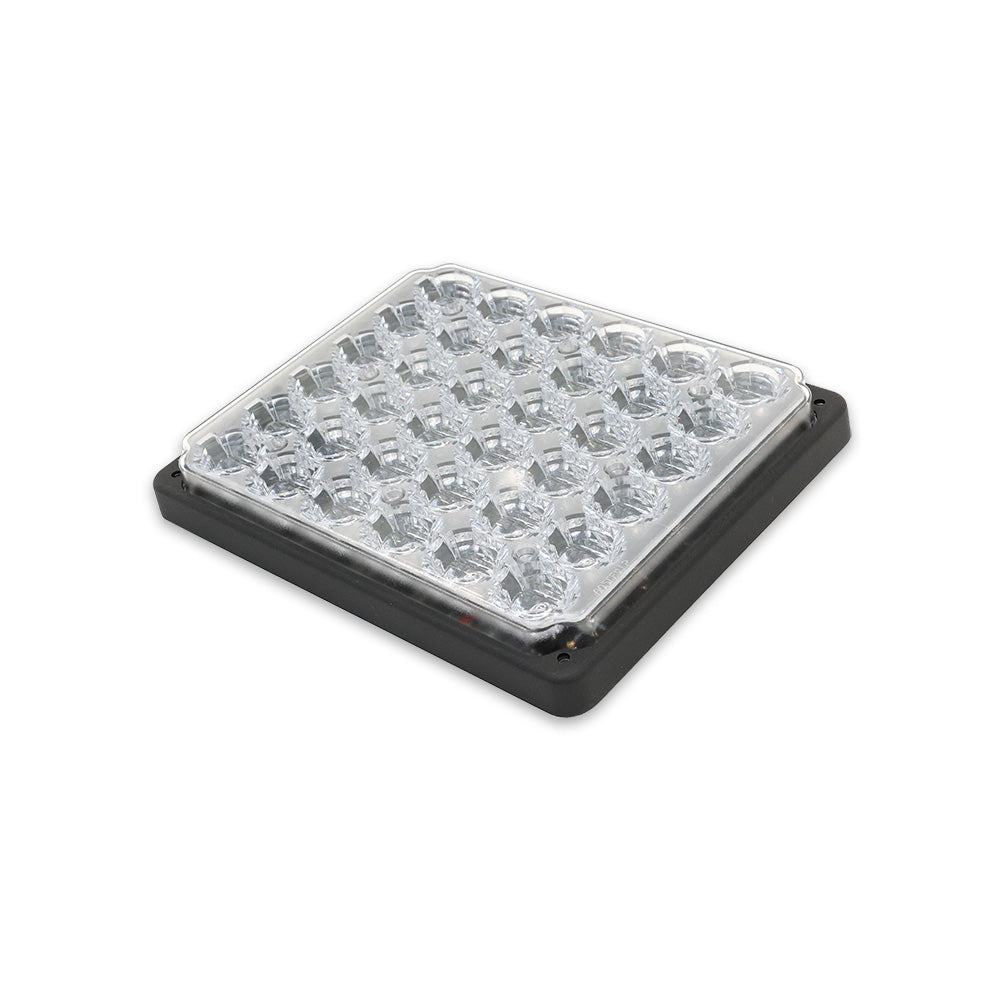

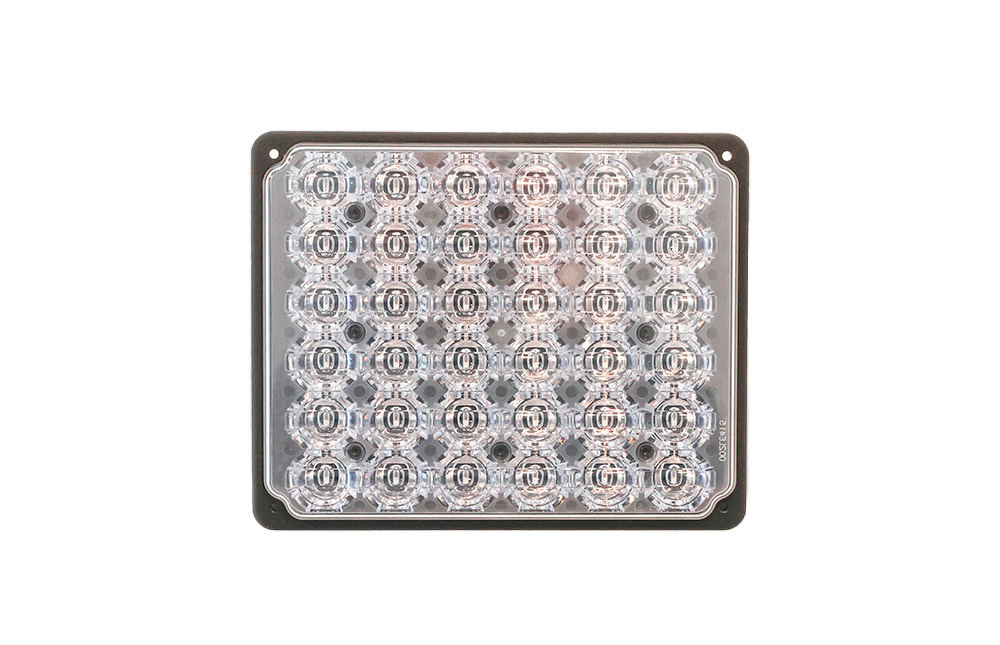

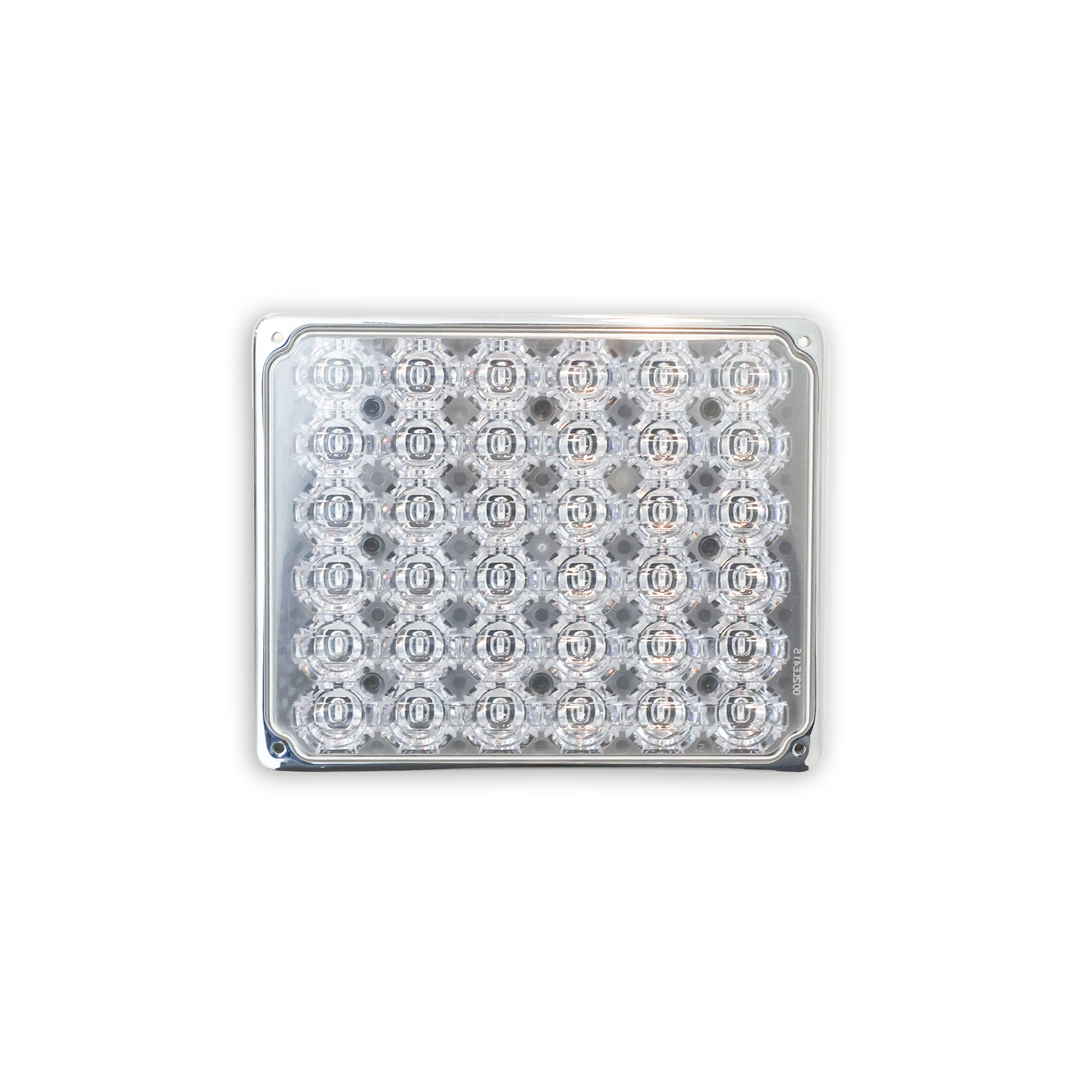

SoundOff Signal nFUSE® 9x7 P Warning Light

Give clear communication with this reliable, high-performing warning light that uses a cost-effective, traditional polycarbonate lens.

NFPA 1901 compliant
bluePRINT and Sync 2 compatible - can sync up to 24 lights
Bright and efficient light output
Non-complex, simple to use
Utilizes a connector to the back of the light-head which allows for the power harness to be separate from the light
Industry standard bolt patterns when installed with legacy mount (sold separately)
Multiple color options to choose from for the lens
Choose to install via our 3-wire serialized communication network (power, ground and control) for increased efficiency, ease of deployment and advanced lighting control or as the traditional discrete wire control (5-wire) - For more information, refer to our Reference Guide

Input Voltage Range

9-32 Vdc

Amperage Draw

1.9 - 2.2 Amps @ 12.8Vdc

Watts

Red: 24 watts; Amber, Blue and White: 28 watts

Operating Temperature

-40° C to +85° C / -40° F to +185° F

LED Options

Warning - 36 LEDs

LED Colors Available

All standard single color warning - amber, blue, green, red and white

Lens Color Options

Amber, blue, clear, green and red

Dimensions

Without Bezel: 9.06" L x 7.25" H x 1.23" D (23.01 cm L x 18.4 cm H x3.12 cm D)

With Bezel: 9.62" L x 7.79" H x 1.32" D (24.4 cm L x 19.8 cm H x 3.4 cm D)

Mount Types

Screw and Stud mounts

Certifications*

SAE J595, CA Title 13, NFPA 1901, KKK-1822-F

*Valid when using compliant patterns, color configurations and active modules
