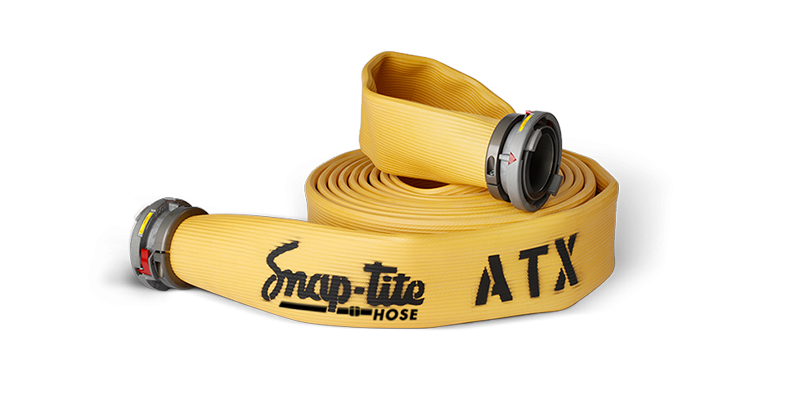

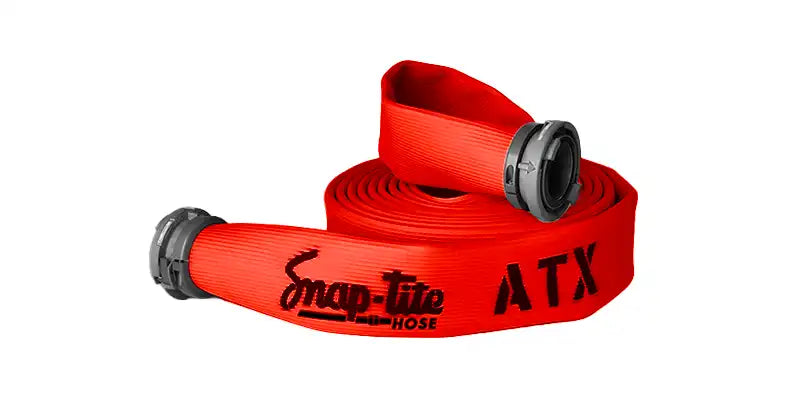

Snap-Tite ATX Rubber Attack Hose

Please call for any additional sizes, couplings, or colors not listed.

ATX™

Reinforced for Strength, Engineered for High-Performance Flow

High-pressure nitrile rubber attack/supply hose

Manufactured in a similar process as TPX™, ATX™ utilizes a 3-ply design where the cover and liner are extruded independently and double vulcanized to guarantee a consistent, compact hose wall. The polyester reinforcement can then be woven tighter, making this hose more resistant to puncture while also being easier to pack and store. ATX™ has a stronger jacket, which increases the service test pressure of the LDH sizes to 300 psi (2068 kPa).

FEATURES

3-ply rubber municipal fire hose with both the cover and liner made of heavy-duty nitrile rubber, high tensile strength, tightly woven polyester reinforcement for maximum durability and flexibility.
Smooth liner keeps friction loss to a minimum for greater flow.
Nitrile rubber cover greatly increases abrasion resistance, provides long service life, and the tightly woven reinforced jacket resists punctures.
Remains flexible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals
Engineered to meet the requirements of high-pressure applications. Designed for relay pumping, pressurizing standpipes, and sprinkler systems.
Manufactured in accordance with NFPA 1960 standard, the latest edition within our ISO-9001:2015 certified quality assurance system.

Hose Sizing & Test Standards

The Premier High-Heat Hose:

Attack
Supply
Soft Suction
USA Made
Klean Hose
Lifetime delamination warranty
1-year warranty
