FireTech Guardian Jr Tail Lights

Stop/Tail Light

Dimensions: 6.45” x 0.85” x 4.09”
Avg. Wattage: 2.88W
Max. Wattage: 5.76W
Avg. Amperage: 0.24A @ 12V DC; 0.12A @ 24V DC
Max. Amperage: 0.48A @ 12V DC; 0.24A @ 24V DC
Input Voltage DC: 10-32V DC
Certifications: FMVSS-108; SAE J2040; SAE J585; IP67 & IP69K

Backup Light

Dimensions: 6.45” x 0.85” x 4.09”
Max. Wattage: 2.88W
Max. Amperage: 0.24A @ 12V DC; 0.12A @ 24V DC
Input Voltage DC: 10-32V DC
Certifications: FMVSS-108; SAE J593; IP67 & IP69K

Turn Light

Dimensions: 6.45” x 0.85” x 4.09”
Avg. Wattage: 3.36W
Max. Wattage: 6.72W
Avg. Amperage: 0.28A @ 12V DC; 0.14A @ 24V DC
Max. Amperage: 0.56A @ 12V DC; 0.28A @ 24V DC
Input Voltage DC: 10-32V DC
Certifications: FMVSS-108; SAE J2261; SAE J588; IP67 & IP69K

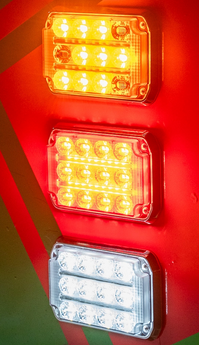

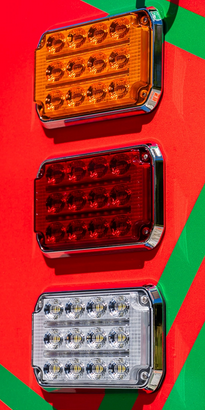

The Guardian® Jr Stop/Tail, Turn, and Backup lights are an expansion of the Guardian series of fixtures. They can be purchased individually (Stop/Tail, Turn, or Backup), or can be purchased in kits with triple and quad tail light housings. These fixtures are an economical addition to your apparatus which allows you to choose all fixtures from one lighting manufacturer for your whole apparatus, all backed by the industry’s first Lifetime Advance Exchange replacement warranty.
