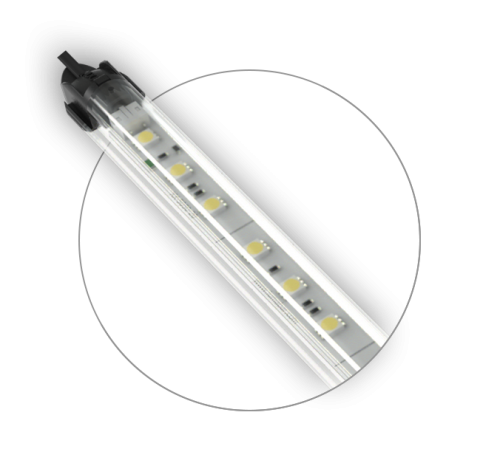

Amdor Luma Bar Integral

Colors Available

Clear White, Red, Blue, Green, Red/White Combination, Blue/White Combination

Applications

Compartment lighting for AMDOR Roll-Up Door

The Integral has been specifically designed to snap into the side frame of your AMDOR^® roll-up door. This helps to provide compartment lighting in a convenient, low-power, space-saving format. The Integral also features the Luma Bar® patented variable aiming system, giving you the flexibility to direct light wherever you need it most. Encased in a high-impact polycarbonate enclosure, the Integral LED light is a robust product that can withstand the daily demands of life on the road.

Standard lengths are available, as well as custom lengths to suit your door size or any other application. Alternatively, Integral can be ordered as a combination of red and white or blue and white lights. Also included is the Luma Bar^® current limiting device, which will shut off in the event of an electrical surge, and then resume once normal operating conditions are met.

Available in standard or custom lengths.

12 Volt available in all options. 24 Volt only available in clear white.

Uses

Integrated lighting for vehicle roll-up doors.

12v Part Numbers

The Integral features Luma Bar's patented variable aiming system. To request the board be set to a specific direction, please include the required configuration at the end of the part number.

Light Angle: Left = L, Center = C, Right = R
Example: TL-9050-33-L (White, 33", Left Angle)

Bold Text = Standard Lengths
