Waterous Wildland Attack Pump & Combination Pump
$7,543.67
Proveedor Waterous
SKU: PB18-G2015

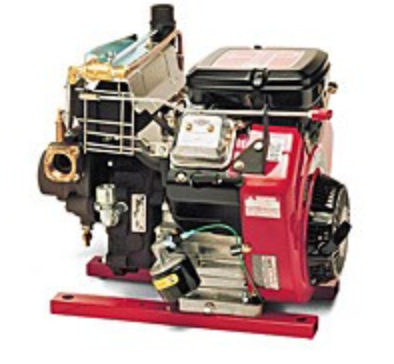

Designed for wildland firefighting and attacking fire suppression, the rugged and powerful Waterous PB18-G2015 wildland fire pump is a gear-driven centrifugal pump powered by a V-twin Briggs and Stratton® 18 HP engine that delivers flows from 20 GPM @ 320 PSI (80 L/min. @ 22 bar) to 75 GPM @ 190 PSI (290 L/min. @ 13 bar).
Low Maintenance
Featuring a standard spring-loaded mechanical shaft seal that never needs adjustment, and backed by exclusive factory service and expert technicians, we’ve got your PB18-G2015 pump service and maintenance needs covered. The power behind the PB18-G2015 wildland fire pumps can be repaired and back in service faster than apparatus equipped with other brands of wildland fire pumps.
Featuring a standard spring-loaded mechanical shaft seal that never needs adjustment, and backed by exclusive factory service and expert technicians, we’ve got your PB18-G2015 pump service and maintenance needs covered. The power behind the PB18-G2015 wildland fire pumps can be repaired and back in service faster than apparatus equipped with other brands of wildland fire pumps.
Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 hp (13.4 kw) @ 3600 RPM. 34.75 cu. In. (570 cc) displacement, 4-cycle, gasoline-fueled, horizontal shaft. High-strength aluminum two-gear case with helical-cut hardened steel gears and anti-friction, deep-grove ball bearings throughout. High-strength aluminum alloy pump body, anodized for superior corrosion resistance. 2-inch female NPT intake ball valve with 1.5 inch female NPT discharge (no ball valve on G2015F). High-strength, double-hubbed, corrosion-resistant bronze impeller mechanically balanced to eliminate vibration. Operator's panel includes discharge pressure and compound intake gauges, low oil pressure warning light, start and stop control, speed control panel light and 12-volt outlet (panel with compound gauge including expanded vacuum scale optional). Bronze wear rings add life to the pump and are easy to replace. Spring-loaded mechanical shaft seal never needs adjustment. Stainless steel shaft sleeve. Combination spark arresting muffler and exhaust primer, which is fast and easy to use. Integral 3 gallon (11 liter) wrap-around base fuel tank (additional 3 gallon remote tank optional). Full-pressure lubrication, with automobile-style oil filter. Standard 12-volt electric and manual recoil starter.
Available in three base options:
- Standard rigid steel channel rail base (control panel shipped loose)
- Optional no base (control panel shipped loose).
- Optional Wrap-around base integrates a tubular-steel design to protect the pump and engine from roll-over damage, with vinyl-gripped sway handles that lock in either carry or stowed positions.
- Standard rigid steel channel rail base (control panel shipped loose)
- Optional no base (control panel shipped loose).
- Optional Wrap-around base integrates a tubular-steel design to protect the pump and engine from roll-over damage, with vinyl-gripped sway handles that lock in either carry or stowed positions.
Dimensions:
|
Base
|
Length
|
Width
|
Height
|
Weight (Dry)
|
Weight (Ship)
|
|
Rail
|
22.75"
|
19"
|
20"
|
120lbs.
|
148lbs.
|
|
Wrap-Around
|
30"
|
20.5"
|
21.5"
|
142.5lbs.
|
178lbs.
|
|
No Base
|
22.5"
|
19"
|
19"
|
108lbs.
|
136lbs.
|
