Waterous Transfer & Supply Pump
$6,883.59
Proveedor Waterous
SKU: PB18-3030

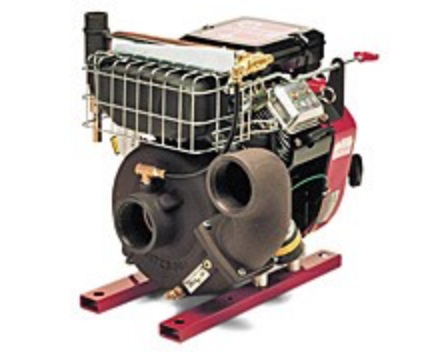

Portable Fire Pumps for Water Transfer with Rail Base
Providing unbeatable fire protection, our PB18-3030 portable pump is an extraordinary water transfer and supply system with exceptional flow capacity and appropriate pressure for efficient hand-line fire suppression operations. Equipped with a V-twin Briggs and Stratton® 18 hp engine, the PB18-3030 portable pump delivers flow capacities from 100 GPM @ 110 PSI (380 L/min @ 7.6 bar) to 400 GPM @ 15 PSI (1500 L/min @ 1 bar).
Low Maintenance
With Waterous skilled service technicians, we’ll get your PB18-3030 fire pump back in service faster than apparatus equipped with other brands of portable fire pumps. Featuring a standard spring-loaded mechanical shaft seal that never needs adjustment, and backed by exclusive factory service and expert technicians, we’ve got your PB18-3030 pump service and maintenance needs taken care of.
With Waterous skilled service technicians, we’ll get your PB18-3030 fire pump back in service faster than apparatus equipped with other brands of portable fire pumps. Featuring a standard spring-loaded mechanical shaft seal that never needs adjustment, and backed by exclusive factory service and expert technicians, we’ve got your PB18-3030 pump service and maintenance needs taken care of.
- Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 hp (13.4 kw) @ 3600 RPM. 34.75 cu. In. (570 cc) displacement, 4-cycle, gasoline-fueled, horizontal shaft.
- High-strength aluminum alloy pump body, anodized for superior corrosion resistance.
- 3-inch female NPT intake with 3-inch female NPT discharge (PB18-3030C) or 3 inch female NPT intake with 3-inch female NPT discharge, forward facing, no check valve (PB18-3030E).
- High-strength, double-hubbed, corrosion-resistant bronze impeller mechanically balanced to eliminate vibration.
- Operator's panel includes discharge pressure and compound intake gauges, low oil pressure warning light, start and stop control, speed control panel light and 12-volt outlet (panel with compound gauge including expanded vacuum scale optional).
- Bronze wear rings add life to the pump and are easy to replace.
- Spring-loaded mechanical shaft seal never needs adjustment.
- Stainless steel shaft sleeve.
- Combination spark arresting muffler and exhaust primer, which is fast and easy to use.
- 3 gallon remote tank
- Full-pressure lubrication, with automobile-style oil filter.
- Standard 12-volt electric and manual recoil starter.
-
Available in three base options:
- Standard rigid steel channel rail base (control panel shipped loose)
- Optional no base (control panel shipped loose).
- Optional Wrap-around base (only available on PB18-3030C models) integrates a tubular-steel design to protect the pump and engine from roll-over damage, with vinyl-gripped sway handles that lock in either carry or stowed positions.
Dimensions
|
Base
|
Length
|
Width
|
Height
|
Weight (Dry)
|
Weight (Ship)
|
|
Rail
|
19.75"
|
20"
|
21"
|
113lbs.
|
141lbs.
|
|
Wrap-Around
|
30"
|
20.5"
|
21.5"
|
135lbs.
|
163lbs.
|
|
No Base
|
19.5"
|
20"
|
20"
|
108lbs.
|
136lbs.
|
