Waterous Wildland Attack Pump & Combination Pump

$7,542.00
Proveedor Waterous
SKU: PB18-2515
No disponible

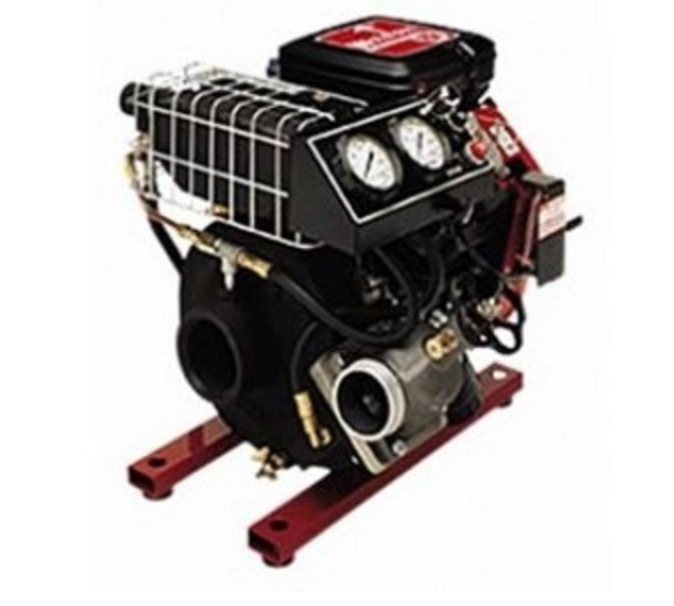

V-Twin Muscle in a Combination Pump System with Rail Base
Designed as combination pump, the durable and powerful Waterous PB18-2515 is direct drive centrifugal pump powered by a V-twin Briggs and Stratton® 18 HP (13.4 kW) engine, delivering The 75 GPM @ 135 PSI (290 L/min @ 9.3 bar) to 150 GPM @ 90 PSI (600 L/min @ 6.5 bar).
  • Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 hp (13.4 kw) @ 3600 RPM. 34.75 cu. In. (570 cc) displacement, 4-cycle, gasoline-fueled, horizontal shaft.
  • 2-1/2-inch female NPT intake.
  • Discharge: ball valve with 1-1/2-inch male NH thread (2515B). Ball valve with 1-1/2-inch female NPT (2515B). 1-1/2-inch female NPT (2515F) (no ball valve).
  • Operator panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control, panel light and 12-volt outlet.
  • Volute body and head with high-strength aluminum alloy, anodized for superior corrosion resistance.
  • High-strength, corrosion-resistant bronze impeller, fully-enclosed, double-hubbed to balance hydraulic thrust and mechanically balanced to eliminate vibration.
  • Long-wearing bronze wear rings. Easy to replace.
  • High-strength stainless steel shaft sleeve.
  • Spring-loaded mechanical type shaft seal.
  • Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve, operates with push/pull knob. Standard on wrap-around. Optional on no base and rail base.
  • Remote 3-gallon (11 liter) tank with fuel level gauge (optional on no base and rail base)
  • Integral 3-gallon (11 liter) fuel tank standard with wrap-around base.
  • Full pressure lubrication system with an automotive-style oil filter. Oil fill tube with dipstick.
  • 12-volt electric starter with manual recoil.
  • 16-amp alternator.

Dimensions

Base
Length
Width
Height
Weight (Dry)
Weight (Ship)
Rail
19.25"
19.5"
20"
111lbs.
148lbs.
Wrap-Around
30"
20.5"
21.5"
133lbs.
161lbs.
No Base
19"
19.5"
19"
106lbs.
143lbs.
