Rock Exotica Omni-Block Swivel Pulleys combine a swivel and pulley into one tool and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Available in single and double sheave versions from a 1.1" radius up to 2.6"
The Omni-Block combines a swivel and pulley into one tool and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Traditionally, a pulley is connected to a swivel by a carabiner. However, the Omni eliminates the need for the carabiner, reducing the length and pieces of equipment in the rigging system. The short length of the Omni is important when used in high-angle, confined spaces, or other space-sensitive rigging environments. The reduced weight of the Omni will make hauling your gear easier. Additionally, the Omni sideplate can be opened without detaching from the carabiner. Traditional pulleys require removal from the carabiner to change the rope. With the Omni, the user is able to do this while the pulley is still secured.
Install and remove rope while still connected to the anchor
Sideplate locks with two-stage, double-catch safety mechanism
Integrated swivel allows pulley to orient while reducing gain
Connect, install and remove rope with one hand
CNC machined for optimal weight & strength
Weight / MBS / WLL / Max Rope / Cert

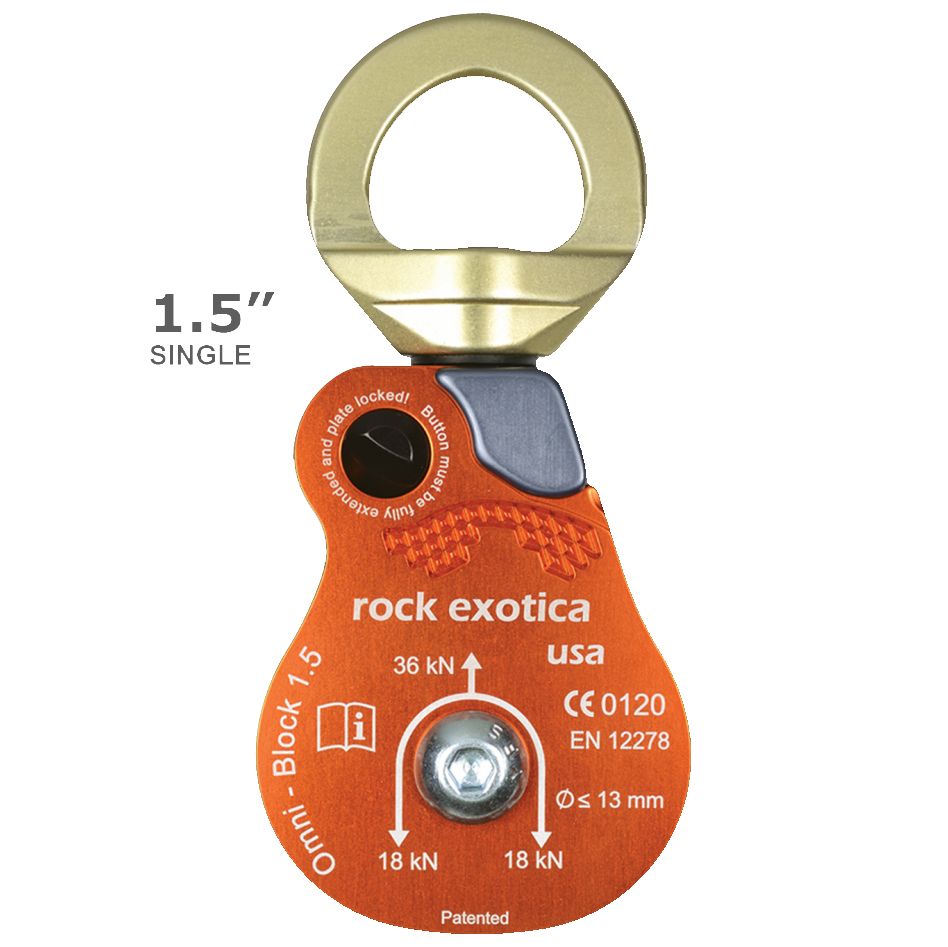

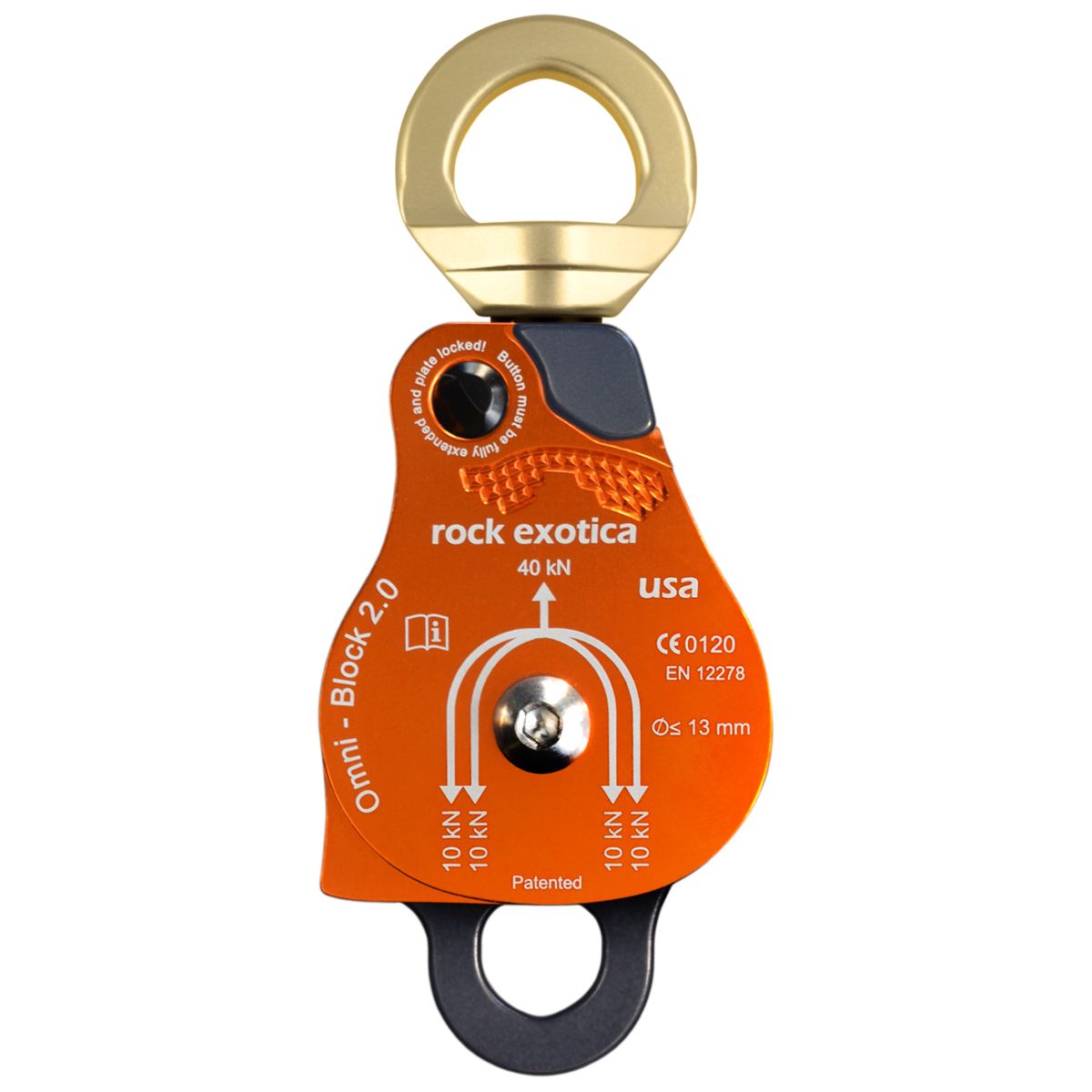

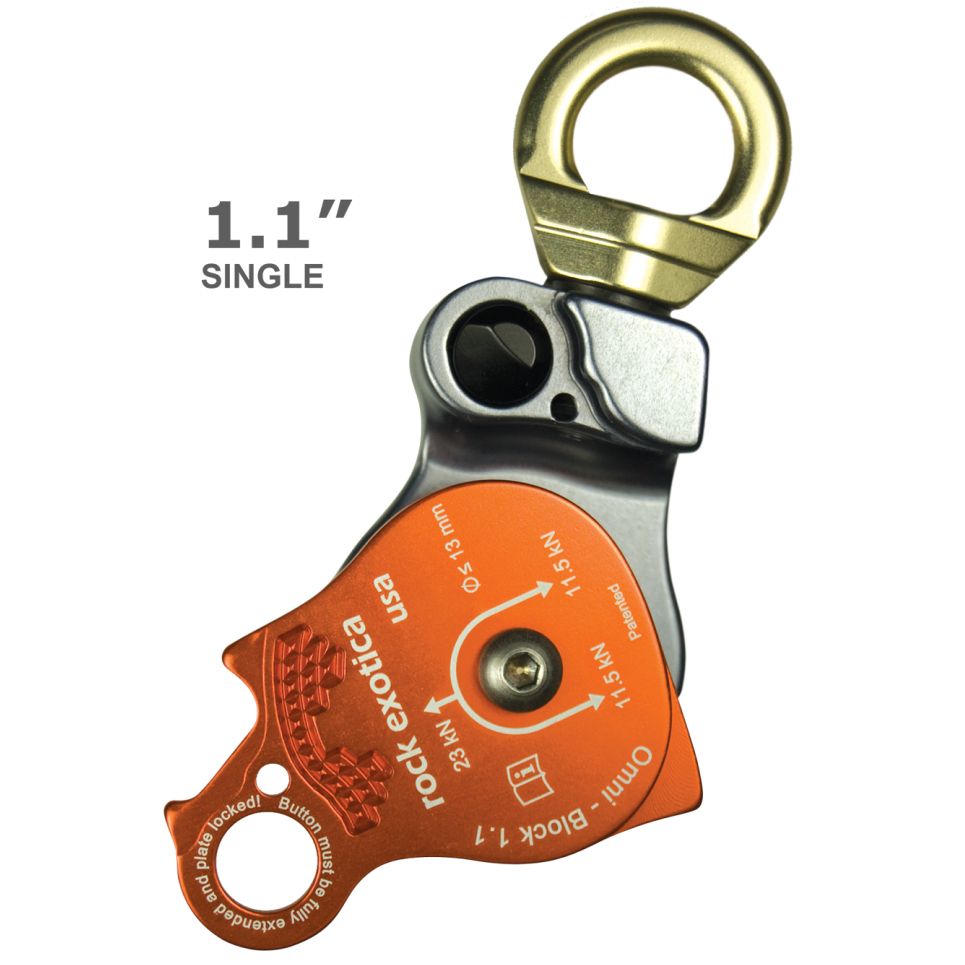

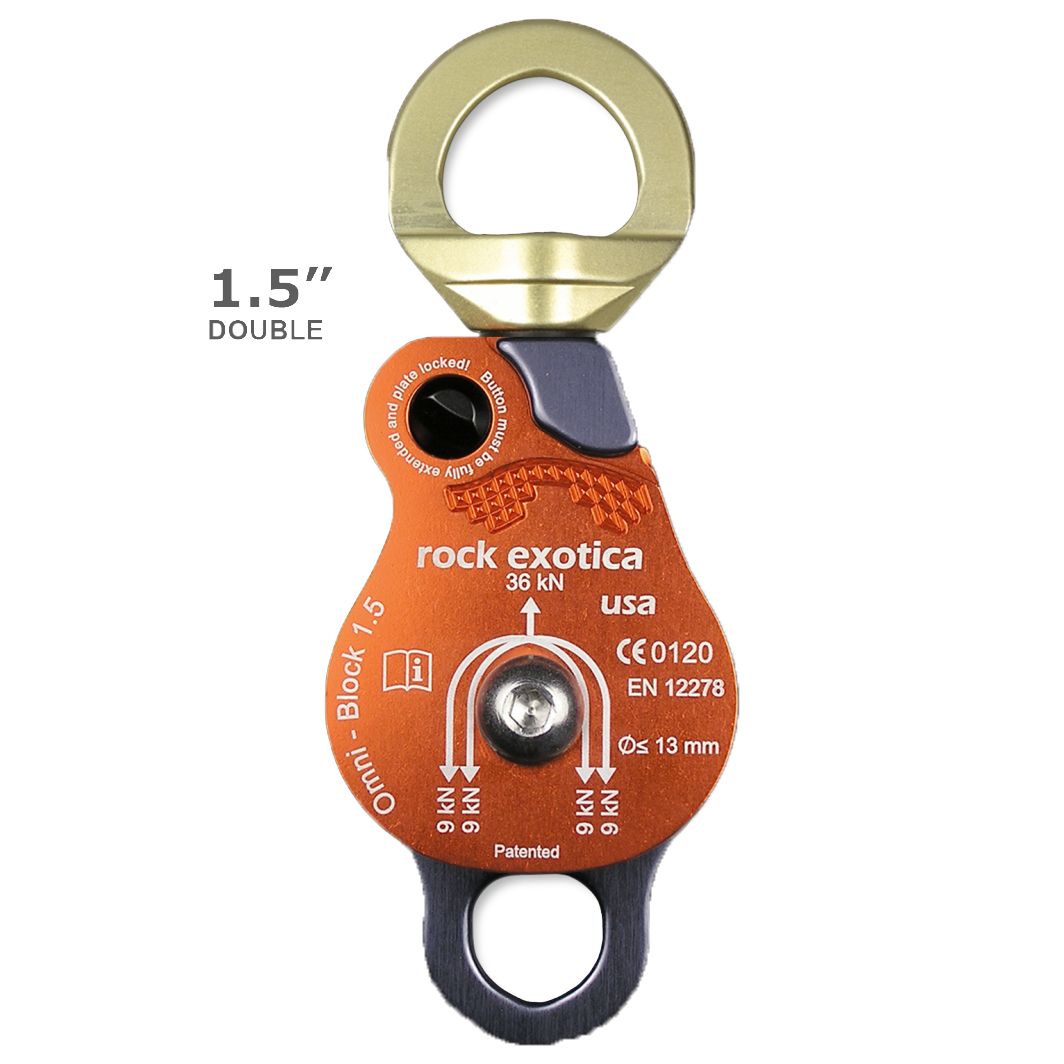

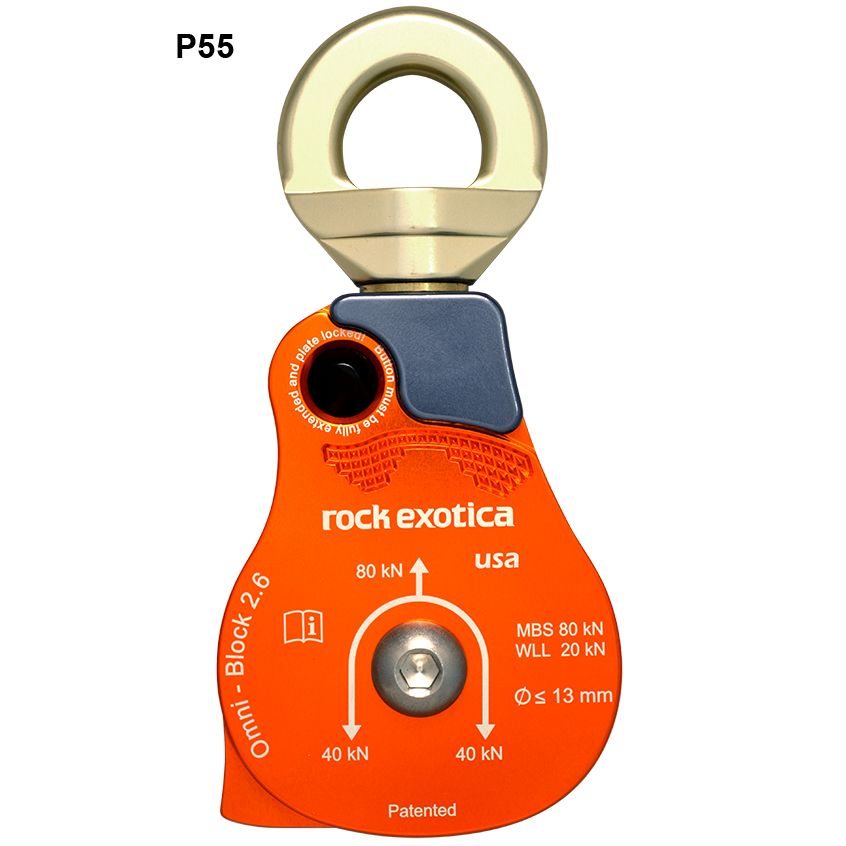

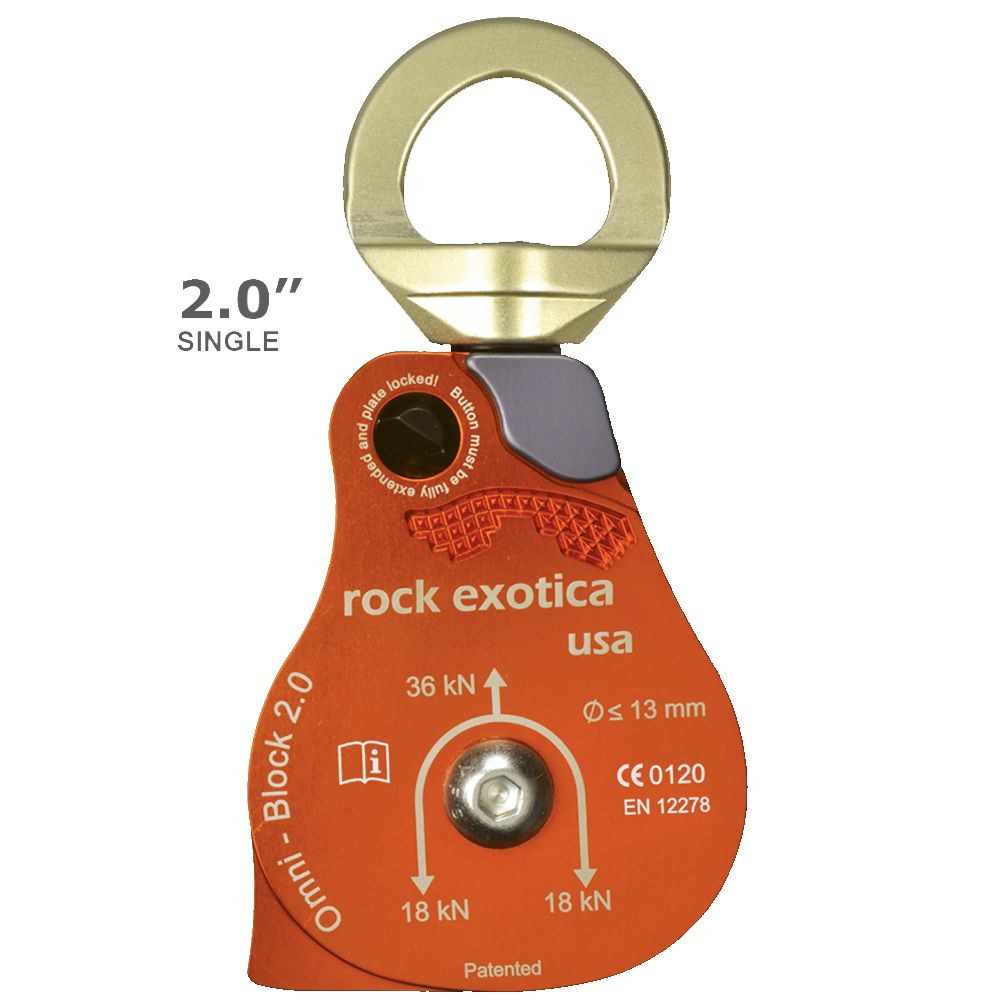

1.1" Single – 5.1oz (145gm) | 23kN | 5kN | .5" (13mm) | CE 1.5" Single – 9.2oz (260gm) | 36kN | 8kN | .5" (13mm) | CE 1.5" Double – 14.5oz (411gm) | 36kN | 8kN | .5" (13mm) | CE 2.0" Single – 12.3oz (348gm) | 36kN | 8kN | .5" (13mm) | CE 2.0" Double – 20.9oz (591gm) | 40kN | 10kN | .5" (13mm) | CE 2.6" Single – 1.9 lbs (850gm) | 80kN | 20kN | .5" (13mm) | CE
