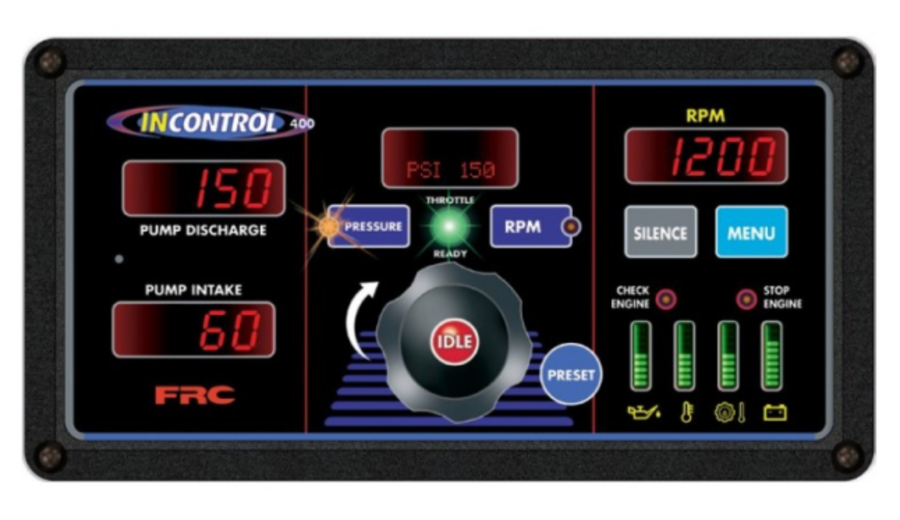

The Fire Research INControl pressure governor and all-in-one instrument panel uses state of the art programmable microprocessor technology. Measuring only 10.5 by 5.5 inches the INControl offers pump discharge and pump intake displays, pump pressure or RPM control, and remote engine displays. It will maintain a steady pump discharge pressure by controlling engine speed or hold a selected engine RPM. It offers complete engine control and remote display in a single compact unit.
The INControl operates in one of two modes, pressure or RPM. In pressure mode the INControl maintains a constant pump discharge pressure. The discharge pressure is monitored and compared to the selected pressure setting, the engine RPM is varied to keep the discharge pressure at the selected setting. In RPM mode the INControl maintains a constant engine RPM. The pump discharge pressure is monitored and can vary but, as a safety feature it will be limited to an increase of 30 PSI. If the discharge pressure increases 30 PSI the governor will automatically lower the engine RPM to prevent a high pressure surge.
Features:
J1939 CAN Bus for Engine Information and Control
Power Up in Pressure Mode
Automatic Regulation of Pump Discharge Pressure
Manual Control of Pressure or Engine RPM Settings
Programmable Presets
Diagnostic Capabilities
No Pressure or RPM Variation When Changing Modes
Limits Increase of Pressure When in RPM Mode
Recognition of No Water Condition With Automatic Response
Interlock Signal Recognition with Throttle Ready LED
Return to Engine Idle With the Push of a Button
Displays and LEDs Automatically Adjust for Day or Night Operation
