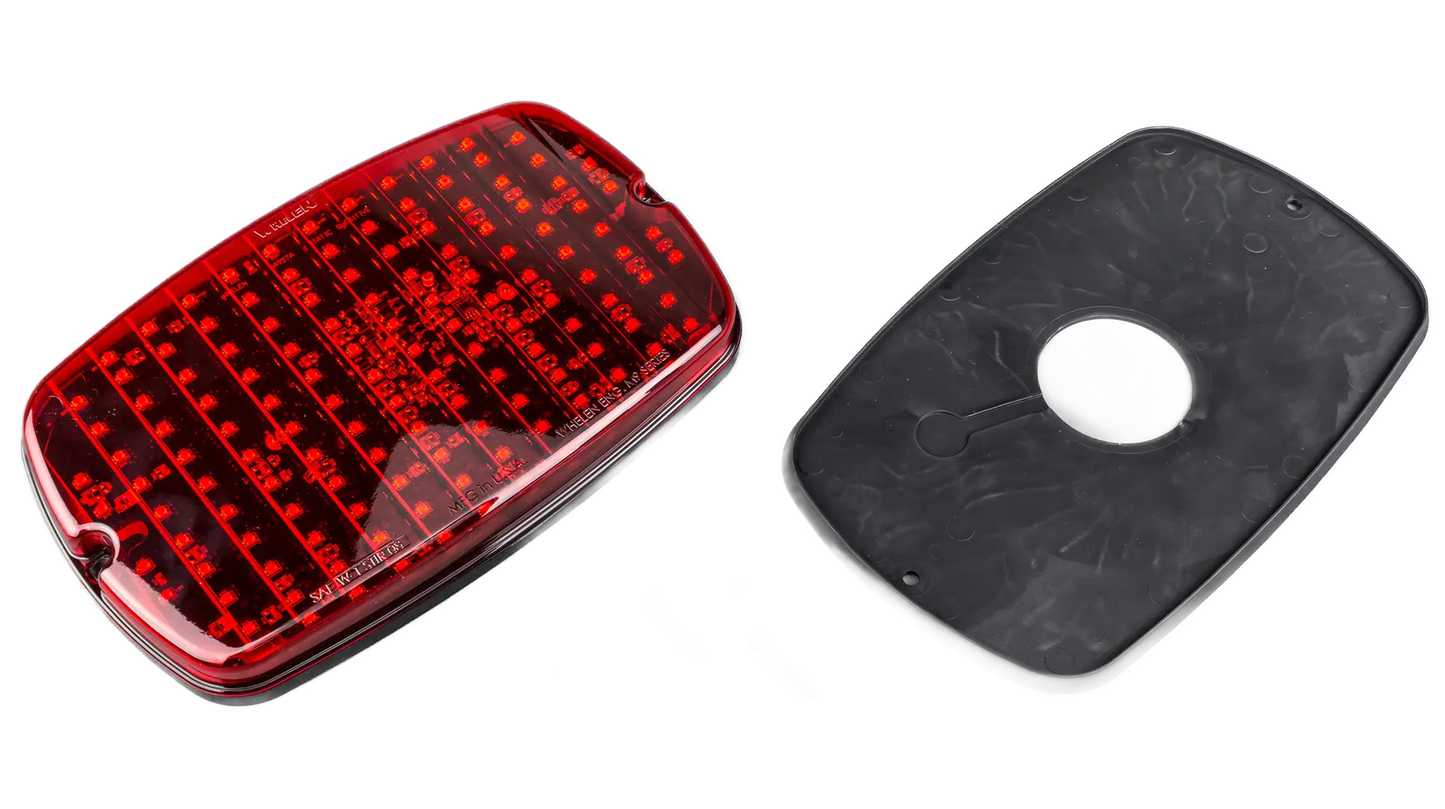

Whelen M9 Series Brake/Tail/Turn Light Head M9BTTX

The Whelen M9 Series Brake/Tail/Turn Light (M9BTTX) is the largest brake/tail/turn light in the M Series Lighthead family. The M9BTTX is built with 136 red LEDs and a Red optic polycarbonate lens. The brake/tail/turn light is designed to be installed as a surface mount warning light with the included two screws. The M9BTTX has two Scan-Lock flash patterns: Steady (Default) and SignalAlert-Steady. The assembly is resistant to water, moisture, dust, and other environmental conditions. The hard coated lens provides extended life/luster protection against UV and chemical exposure. The PC board is conformal coated for additional protection. The M9BTTX is furnished with a 6' pigtail wiring, a rubber gasket, 2 screws, and screw grommets included for installation. Additional mounting options are purchased separately.

Features

• 136 LEDs for an extremely bright output.
• 2 Scan-Lock patterns: Steady (Default) and SignalAlert-Steady.
• Red optic, hard coated polycarbonate lens.
• Sealed for resistant to water, moisture, dust, and other environmental conditions.
• Four wire, 6 inch pigtail.
• Rubber gasket, 2 screws, and screw grommets included for installation.

Specifications

• Lens Color: Red
• Voltage: +12 VDC
• Amp Draw High: 0.75 Amps
• Amp Draw Low: 0.055 Amps
• Size: 6.51” H x 10.34” W x 1.39” D.
• SAE specifications J1398, J585, J1395, J586, and J1330.

Whelen Five Year Warranty
